| Seal 05 EV Parameter and Configuration Sheet |
| 520 Smart Edition |
| Model Information |
| Model | 520 Smart Edition |
| ■ Dimensions |
| Length × Width × Height (mm) | 4520 × 1860 × 1630 |
| Wheelbase (mm) | 2720 |
| Front/Rear Track (mm) | 1565 |
| Minimum Turning Radius Measured (m) | 4.65 |
| Curb Weight (kg) | 1780 |
| Tire Specification | 215/60 R17 |
| Vehicle Warranty | Non-commercial vehicle: lifetime warranty for the three-electric system (first owner), vehicle warranty period 6 years or 150,000 km |
| ■ Performance Parameters |
| Drive Motor Type | Permanent Magnet Synchronous Motor |
| Drive Type | Rear-mounted, rear-wheel drive |
| Drive Motor Max Power (kW) | 160 |
| Drive Motor Max Torque (N·m) | 330 |
| 0-100 km/h Acceleration Time (s) | 7.2 |
| Max Speed (km/h) | 180 |
| CLTC Pure Electric Range (km) | 520 |
| Traction Battery Capacity (kWh) | 60.9 |
| Traction Battery Type | Lithium Iron Phosphate |
| AC Charging Max Power (kW) | 7 |
| DC Charging Max Power (kW) | 156 |
| DC Fast Charging Time (min) (30%-80%) | 18 |
| ■ Braking and Suspension |
| Front Brake Type | Ventilated Disc |
| Rear Brake Type | Disc |
| Parking Brake Type | Electronic Parking Brake |
| Power Steering Type | Electric Power Steering |
| Front Suspension Type | MacPherson |
| Rear Suspension Type | Five-Link |
| ■ New Energy Configuration |
| e-Platform 3.0 Evo | ● |
| Next-Generation Vehicle Electrical/Electronic Architecture | ● |
| High-Safety Blade Battery | ● |
| CTB (Cell-to-Body) Technology | ● |
| Intelligent DC Fast Charging Technology | ● |
| High-Efficiency Drive Integrated Thermal Management System | ● |
| Energy Management Intelligent Control System | ● |
| VTOL Mobile Power Station | ● |
| Scheduled Vehicle Use System | ● |
| Eco/Comfort/Sport/Snow Driving Modes | ● |
| ■ Safety Configuration |
| Shift-by-Wire (Column Shifter) | ● |
| Full HD Panoramic View Camera | ● |
| Drive Recorder (DVR) | ● |
| Sentry Mode | ● |
| Remote View | ● |
| Driver Front Airbag | ● |
| Passenger Front Airbag | ● |
| Front Seat Side Airbags | ● |
| Front/Rear Integrated Curtain Airbags | ● |
| Front Center Airbag | ● |
| Front Seatbelt Unbuckled Warning | ● |
| Rear Seatbelt Unbuckled Warning | — |
| Driver Fatigue Monitor (DFM) | — |
| Emergency Call (E-Call) | — |
| TPMS Direct Tire Pressure Monitoring System (Digital Display) | ● |
| ISO-FIX Child Seat Anchor Device | ● |
| Speed-Sensing Auto Door Lock | ● |
| Mechanical Child Safety Lock | ● |
| Low-Speed Pedestrian Warning System | ● |
| Intelligent Power Brake System | ● |
| Anti-lock Braking System (ABS) | ● |
| Electronic Stability System (ESC) | ● |
| Hydraulic Brake Assist (HBA) | ● |
| Distributed Traction Control System (TCS) | ● |
| Parking Brake Deceleration Control System | ● |
| Vehicle Dynamics Control (VDC) | ● |
| Electronic Brake Distribution (EBD) | ● |
| Hill Start Assist (HSA) | ● |
| Comfort Braking Function | ● |
| Cooperative Regenerative Braking System | ● |
| Central Door Lock | ● |
| Body Electronic Anti-Theft System | ● |
| ■ DiPilot Driving Assistance |
| Driver Assistance System | God's Eye C - Assisted Driving Tri-Vision Edition (DiPilot 100) |
| ■ DiPilot Driving Assistance - Driving Assist |
| Highway Navigate on Autopilot (HNOA) | ● |
| Lane Change Assist (ILCA) | ● |
| Lane Cruise Assist (ICC) | ● |
| Adaptive Cruise Control (ACC) | ● |
| Intelligent Speed Limit Control (ISLC) | ● |
| Traffic Sign Recognition (SLIF) | ● |
| Intelligent Speed Assist (ISA) | ● |
| Intelligent High Beam Control (IHBC) | ● |
| Surround View (SR) | ● |
| ■ DiPilot Driving Assistance - Parking Assist |
| Autonomous Valet Parking (AVP) | ● |
| Auto Parking Assist (APA) | ● |
| Remote Parking Assist (RPA) | ● |
| Parking Distance Control (PDC) | ● |
| Side Distance Warning (SDW) | ● |
| Maneuver Emergency Braking (MEB) | ● |
| ■ DiPilot Driving Assistance - Safety Assist |
| Automatic Emergency Braking (AEB) | ● |
| Forward Collision Warning (FCW) | ● |
| Front Cross Traffic Alert (FCTA) | ● |
| Front Cross Traffic Brake (FCTB) | ● |
| Rear Collision Warning (RCW) | ● |
| Rear Cross Traffic Alert (RCTA) | ● |
| Rear Cross Traffic Brake (RCTB) | ● |
| Blind Spot Detection (BSD) | ● |
| Door Open Warning (DOW) | ● |
| Emergency Lane Keep Assist (ELKA) | ● |
| Curve Speed Warning (CSW) | ● |
| Lane Departure Assist (LDA) | ● |
| ■ DiPilot Driving Assistance - Hardware Configuration |
| Front Ultrasonic Radars | 6 |
| Rear Ultrasonic Radars | 6 |
| High-Precision Front Millimeter-Wave Radar | 1 |
| High-Precision Corner Millimeter-Wave Radars | 4 |
| Driver Assistance Front-View Cameras | 3 |
| Driver Assistance Surround-View Cameras | 4 |
| Driver Assistance Surround-View Cameras | 4 |
| Driver Assistance Rear-View Camera | 1 |
| ■ DiLink Smart Cockpit |
| Smart Cockpit High Edition - DiLink 100 | ● |
| 12.8-inch HD Floating Pad | ● |
| 5G Connectivity | ● |
| Smart Cloud Service In-Car Butler | ● |
| GPS Smart Navigation System | ● |
| Online Audio/Video Entertainment System | ● |
| Full-Scene Smart Voice | ● |
| Four-Zone Voice Interaction System | ● |
| In-Car Bluetooth System | ● |
| Phone Bluetooth Key | ● |
| Phone NFC Key | ● |
| Phone Cloud Key | ● |
| Keyless Entry & One-Button Start | ● |
| Smart Power On/Off | ● |
| In-Car Wi-Fi Hotspot | ● |
| OTA Remote Smart Upgrade | ● |
| Number of Speakers | 8 |
| Immersive Multi-Color Ambient Light | — |
| Nap Mode/Pet Mode/Baby Mode, etc. | ● |
| ■ Exterior Configuration |
| Panoramic Glass Roof | ● |
| Integrated Roof Rails | ● |
| Active Grille Shutter | — |
| Illuminated Rear Logo | ● |
| Semi-Hidden Door Handles | ● |
| Two-Tone Aluminum Alloy Wheels | ● |
| 110L Large Front Trunk (Frunk) | ● |
| Front Hood Dual Gas Struts | ● |
| Upper Side Window Black Trim Strip | ● |
| Electric Tailgate | — |
| ■ Interior Configuration |
| Built-In Refrigerator | — |
| Electric Sunshade | ● |
| 8.8-inch LCD Instrument Cluster | ● |
| Multi-Function Leatherette Steering Wheel | ● |
| Capacitive Steering Wheel | ● |
| Steering Wheel 4-Way Manual Adjustment | ● |
| Front 50W Wireless Single Phone Charger | ● |
| Front USB Ports (Type-A + Type-C) | ● |
| Rear USB Ports (Type-A + Type-C) | ● |
| Driver Side LED Vanity Mirror | ● |
| Passenger Side LED Vanity Mirror | ● |
| Hidden Roof Sunglasses Holder | ● |
| Magnetic Tissue Box Holder | ● |
| Built-In Front ETC | ● |
| Front 12V Power Outlet | ● |
| Rear 12V Power Outlet (Trunk) | ● |
| Starting Iron-Phosphate Battery | ● |
| ■ Seat Configuration |
| Full Leatherette Seats | ● |
| Front Seat Headrest Height Adjustable | ● |
| Rear Seat Headrest Height Adjustable | ● |
| Driver Seat 6-Way Electric Adjustment | ● |
| Passenger Seat 4-Way Electric Adjustment | ● |
| Front Seat Ventilation | ● |
| Front Seat Heating | ● |
| Front Center Armrest | ● |
| Rear Seats 40:60 Foldable | ● |
| Rear Center Armrest with Dual Cup Holders | ● |
| ■ Lighting Configuration |
| LED Headlights | ● |
| LED Daytime Running Lights | ● |
| Automatic Headlights | ● |
| Headlights On/Off Welcome & Delay Function | ● |
| Headlight Height Adjustable | ● |
| Corner Assist Lighting | ● |
| LED Rear Combination Taillights | ● |
| LED High-Mount Brake Light | ● |
| Trunk Light | ● |
| Exterior Mirror Puddle Lights | ● |
| Charging Port Light | ● |
| LED Interior Light | ● |
| ■ Glass / Mirror Equipment |
| Four Electric Windows | ● |
| Four Windows One-Touch Up/Down with Anti-Pinch | ● |
| Exterior Mirror Electric Adjustment | ● |
| Exterior Mirror Heating/Defogging | ● |
| Exterior Mirror Electric Folding | ● |
| Interior Mirror Manual Dimming | ● |
| Rain-Sensing Front Wiper | — |
| Rear Door and Rear Window Privacy Glass | — |
| Rear Wiper | ● |
| Rear Window Electric Heating Defogger/Defroster | ● |
| ■ Climate Control Configuration |
| Heat Pump Air Conditioning | ● |
| Automatic Climate Control | ● |
| Rear Air Vents | ● |
| PM2.5 Air Filter | ● |
| Remote High-Temperature Sterilization Mode | ● |
| Notes: |
| "●" indicates this configuration is available, "—" indicates not available, "○" indicates optional. |
| To better meet customer needs, BYD continuously develops and improves its vehicles. Some configurations and specifications of vehicles sold on the market may differ from this configuration sheet. Please refer to the actual vehicle for details. Do not compare this sample's content with your purchased vehicle's equipment and parameters to claim compensation for differences. The Maneuver Emergency Braking (MEB) function will be gradually enabled through OTA remote updates. Highway Navigate on Autopilot function availability is subject to official notifications. |
| Regarding pure electric range: Actual on-road range may vary due to different ambient temperatures, road conditions, vehicle status, driving habits, etc. |
| The DiLink smart connectivity system will be continuously updated; specific functions may differ from this sheet. Some functions are implemented via third-party apps. Refer to the actual vehicle or the latest DiLink version for details. |
| The lifetime warranty for the three-electric system is subject to non-commercial vehicle use (first owner), with total driving mileage within each 12-month period from vehicle delivery not exceeding 30,000 km. See the "Three-Electric System Lifetime Warranty Certificate" or relevant provisions for details. |
| The Phone NFC Key requires a device with NFC function and manufacturer authorization for BYD to enable relevant device functions. For specific device models supporting this function, please consult local authorized dealers or refer to the actual device you are using. |
| All models are eligible for 2 years of cloud service and 2 years of in-car network data service (5GB/month). |
| None of the models come with a 7kW wall-mounted charging box. The first owner is entitled to free charging pile installation service rights within two years from the delivery date (service includes: 7kW wall-mounted charging box, up to 30 meters of cable and accessories, overcurrent and leakage protection devices and their installation accessories, two-year warranty for the charging pile and installation service). Consult an authorized BYD dealer for details. |
| The VTOL mobile power station function requires an external discharge connection device. This device is not included with any model and can be purchased from the BYD Ocean APP or an authorized dealer if needed. |
| The driver assistance system cannot handle all traffic, weather, and road conditions and cannot fully replace the driver’s control. The driver must always pay attention to current traffic conditions and be ready to take over control of the vehicle. Please read everything about this function in the user manual to understand its limitations. Drivers should be aware of these limitations before using the function. Use caution in complex or changing traffic conditions, snowy/icy/rainy/wet road conditions, waterlogged or muddy roads, poor visibility, winding mountain roads, highway entrances/exits, etc. |
| This configuration sheet is applicable from March 2025 onward. |
Seal 05 EV 520 Smart Edition
Short Description:
With a more powerful motor, larger battery, longer range, and faster charging power that many users care about, the 520 Smart Edition better supports medium-to-long-distance travel.
- MODEL:520 Smart Edition
- ENGINE: Permanent Magnet Synchronous Motor
- Guide price: 12.78
Price: US $ 16533 – 17533
Leave Your Message
相关文章
BYD e2 Honor Edition Luxury (Black Interior)
The BYD e2 Honor Edition is built on the innovative e-Platform 3.0, featuring a 3H high-strength body structure as a compact pure electric hatchback. During actual driving, its electric powertrain delivers smooth and powerful performance, with highly responsive steering that ensures excellent stability and balance on sharp turns or uneven roads.
Han EV Intelligent Driving 605KM Honor Edition (Kylin Brown Interior)
Performance-oriented design with Chinese aesthetic elements, combining modern style with cutting-edge technology as a flagship model.
BYD Song PLUS EV Smart Driving Edition 605KM Flagship Version
The closed grille paired with "Rippling Light" LED headlights creates a sharp, futuristic aesthetic. Flowing body lines and 19" dual-tone aero wheels enhance both style and aerodynamics. The rear design features clean, international styling with the signature "Divine Eye C" badge denoting BYD's advanced ADAS system.

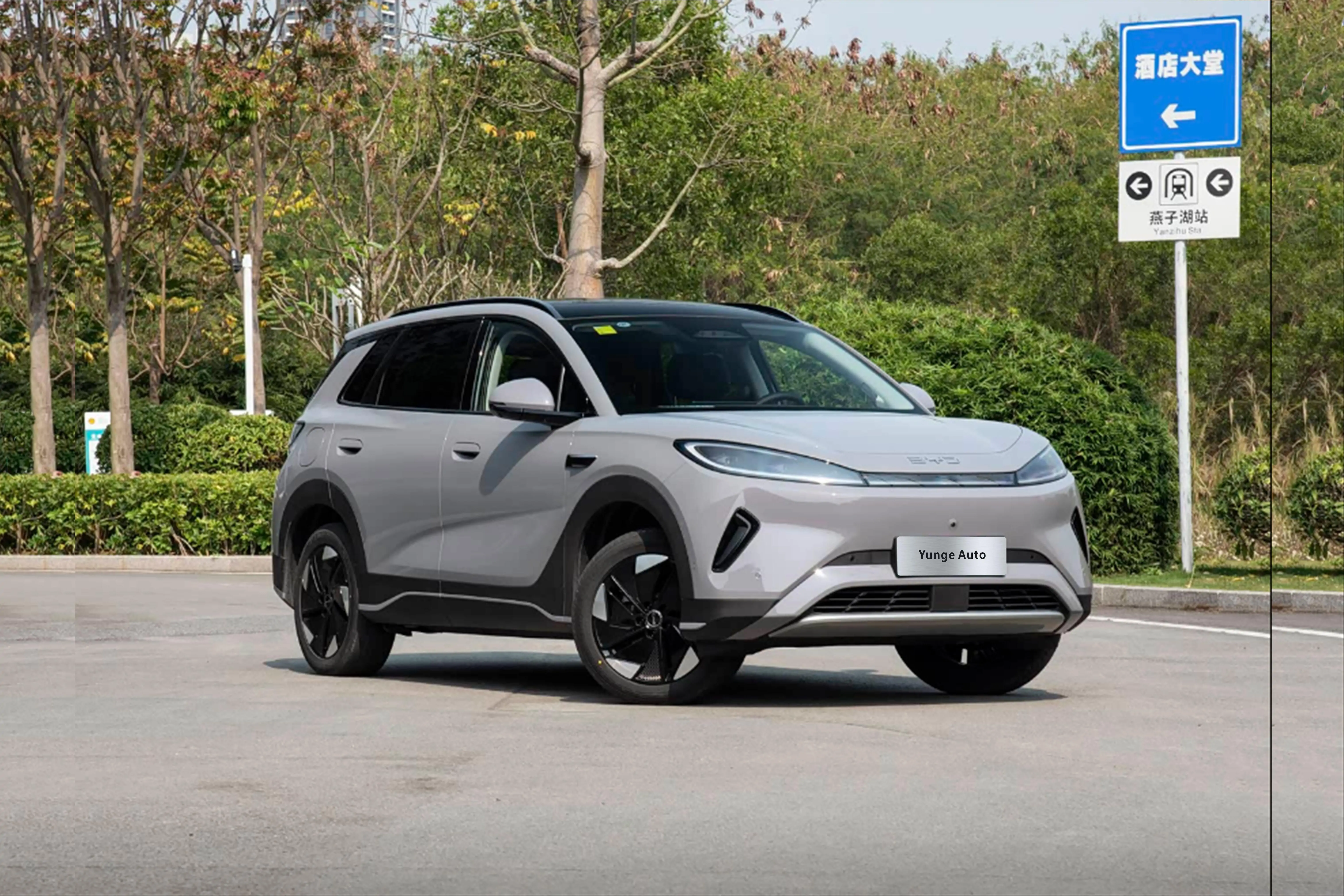

Seal 05 EV 520 Flagship Smart Edition
